Complete 16-Piece 7/8” X 7/8” Chromoly Heim Joint Steering & Suspension Kit

Upgrade your off-road steering and suspension system with this complete 16-piece 7/8” X 7/8” Chromoly Heim Joint Kit. Built for rock crawler, and heavy-duty 4x4 applications, this Setup delivers maximum strength, smooth articulation, and reliable performance for extreme trail and race conditions.

Take your custom steering and suspension build to the next level with this premium 16-piece Chromoly Heim Joint Kit from East West Off Road. Designed for hardcore off-road performance, this complete kit includes heavy-duty heat-treated chromoly Heim joints, weld-in tube adapters, and jam nuts engineered for steering systems, rock crawlers, overland rigs, race vehicles, and custom 4x4 fabrication.

Built to handle extreme loads and harsh trail conditions, the fully heat-treated chromoly Heim joints feature a massive 46,500 lb radial static load rating for exceptional strength and reliability.

Each Heim joint uses a hard chrome 52100 steel bearing with a Teflon-lined race for smooth articulation and long-term durability. The included weld-in tube adapters are precision-machined from durable 1020 steel and designed for DOM tubing applications.

This complete kit is ideal for fabricating tie rods, drag links, steering links, suspension arms, and custom off-road suspension systems.

What’s Included in the 16-Piece Kit

Heat-treated chromoly Heim joints
Right-hand and left-hand rod ends
Right-hand and left-hand weld-in tube adapters
Right-hand and left-hand jam nuts
Complete matching steering and suspension hardware
Precision-machined components for custom fabrication

Key Features

Complete 16-piece steering and suspension kit
Fully heat-treated chromoly Heim joints
Massive 46,500 lb radial static load rating
Hard chrome 52100 steel bearings
Teflon-lined races for smooth articulation
7/8” X 7/8” right-hand and left-hand thread components
Heavy-duty weld-in tube adapters
Compatible with 1.00" and 1.5" ID tubing
Works with .120" and .250" wall DOM tubing
Large hex head adapters for easy adjustments
High-strength jam nuts included
Built for extreme off-road conditions

Benefits

Complete Steering & Suspension Solution

Everything needed for custom steering and suspension fabrication in one heavy-duty kit.

Extreme Strength for Off-Road Abuse

Designed to handle demanding rock crawling, trail riding, overlanding, and racing applications.

Smooth Articulation & Long Service Life

Teflon-lined Heim joints provide smooth movement with reduced wear under heavy loads.

Easy Steering Adjustments

Right-hand and left-hand threaded components make alignment and steering adjustments simple.

Specifications

Product Type: Heim Joint Steering & Suspension Kit
Kit Size: 16 Piece Set
Thread Size: 7/8" X 7/8" RH & LH
Heim Joint Material: Heat-Treated Chromoly
Tube Adapter Material: 1020 Steel
Load Capacity: 46,500 lbs Radial Static
Bearing Material: 52100 Steel
Bearing Finish: Hard Chrome
Race Type: Teflon-Lined
Tubing Compatibility: 1.00" & 1.5" ID
DOM Compatibility: .120" & .250" Wall
Applications: Steering & Suspension
Country of Manufacture: USA

Why Choose This Kit?

This complete 16-piece kit is trusted by off-road fabricators, racers, and rock crawlers who need uncompromising strength and reliability. Whether you're upgrading a Dana 44 steering system or building a custom suspension setup, this kit provides everything needed for serious off-road performance.

Ideal Use Cases

Dana 44 steering systems
Tie rod fabrication
Drag link upgrades
Rock crawler steering systems
Overland vehicle suspension builds
Custom 4x4 steering setups
Off-road race vehicle fabrication
Heavy-duty DOM tubing projects

Welding Advice

For best welding results:

Begin welding on the tube instead of directly on the adapter
Avoid welding with the rod ends installed
Allow all components to cool completely before assembly
Proper cooling prevents thread distortion and bearing damage

Brake Parts (3 products)

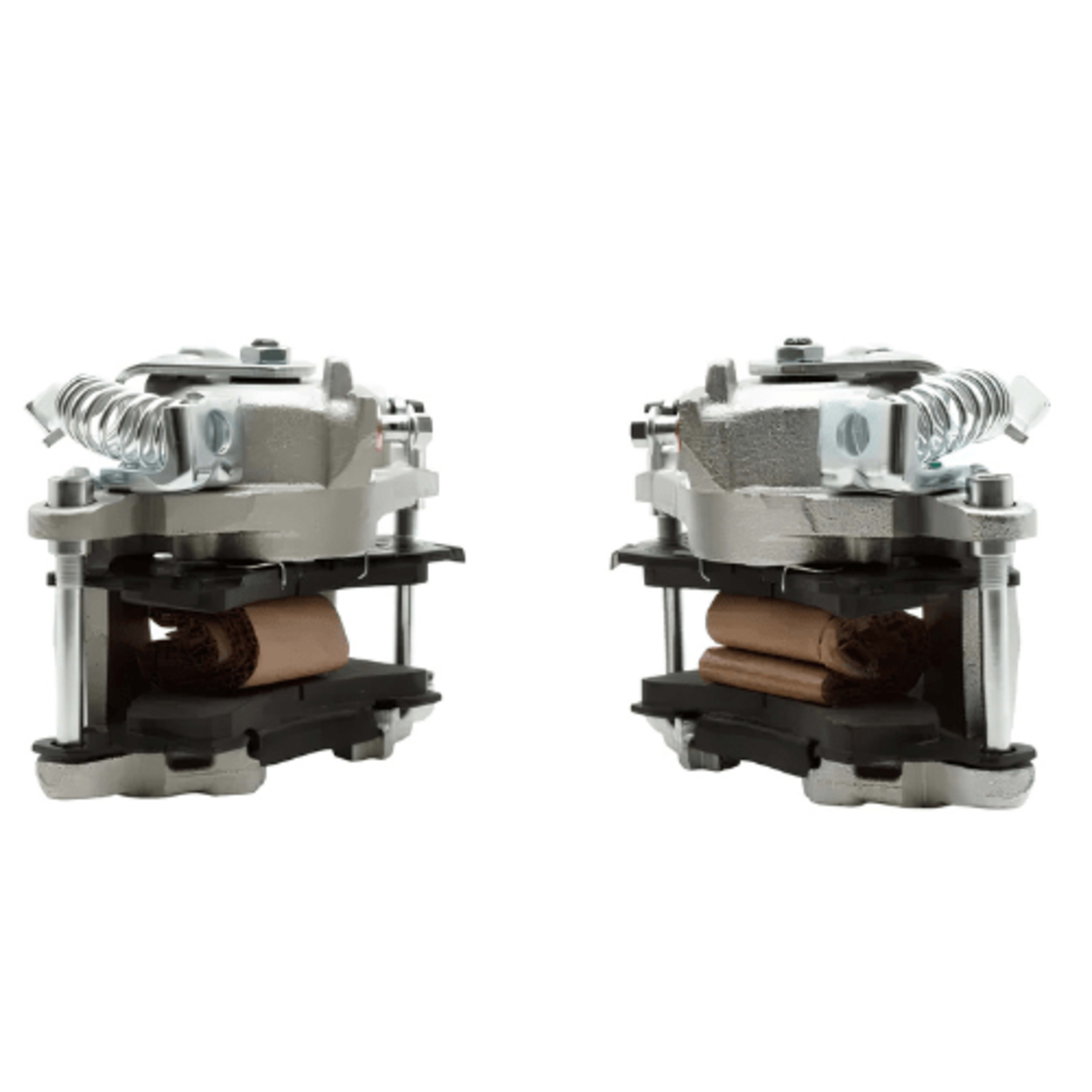

CADILLAC EL DORADO REAR BRAKE CALIPERS WITH PARKING BRAKE LEVER KIT | EWO

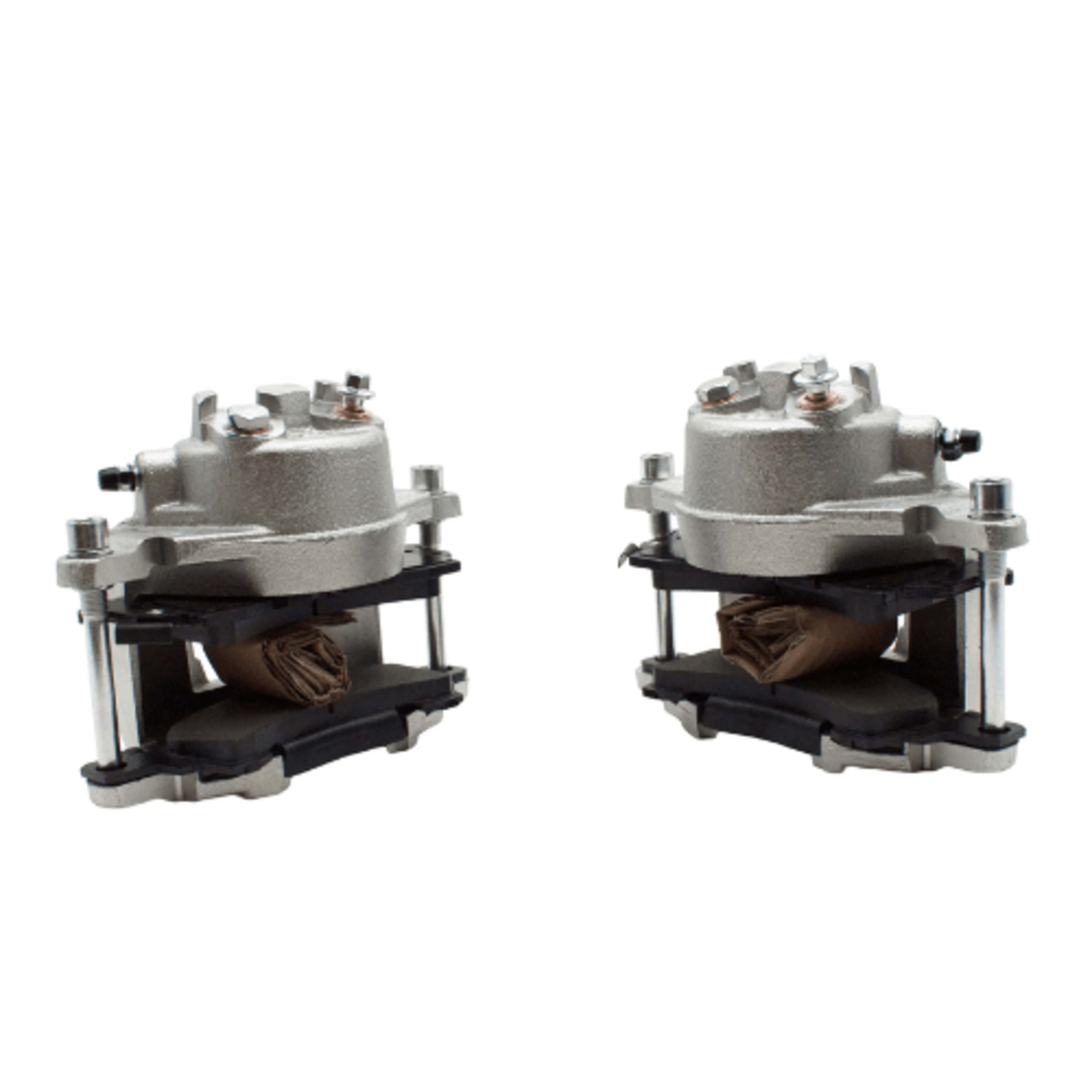

EWO GM JB6 DUAL-BLEEDER BRAKE CALIPER (LOADED) – GM DISC BRAKE CONVERSION CALIPER
