Dana 44 High Steer Crossover Kit for 1-Ton GM/Chevy with Knuckle

Dana 44 High Steer Set Up for ALL Dana 44 GM/CHEVY/JEEP Application.

Arms are made with Domestic Billet Blocks and Machined by American Workers to ensure a Life Time Warranty. Arms are Whooping 1.25” Thick with 4 Holes Style. Tie Rod Ends are made Metal to Metal with Spring Technology way beyond any Expectations.

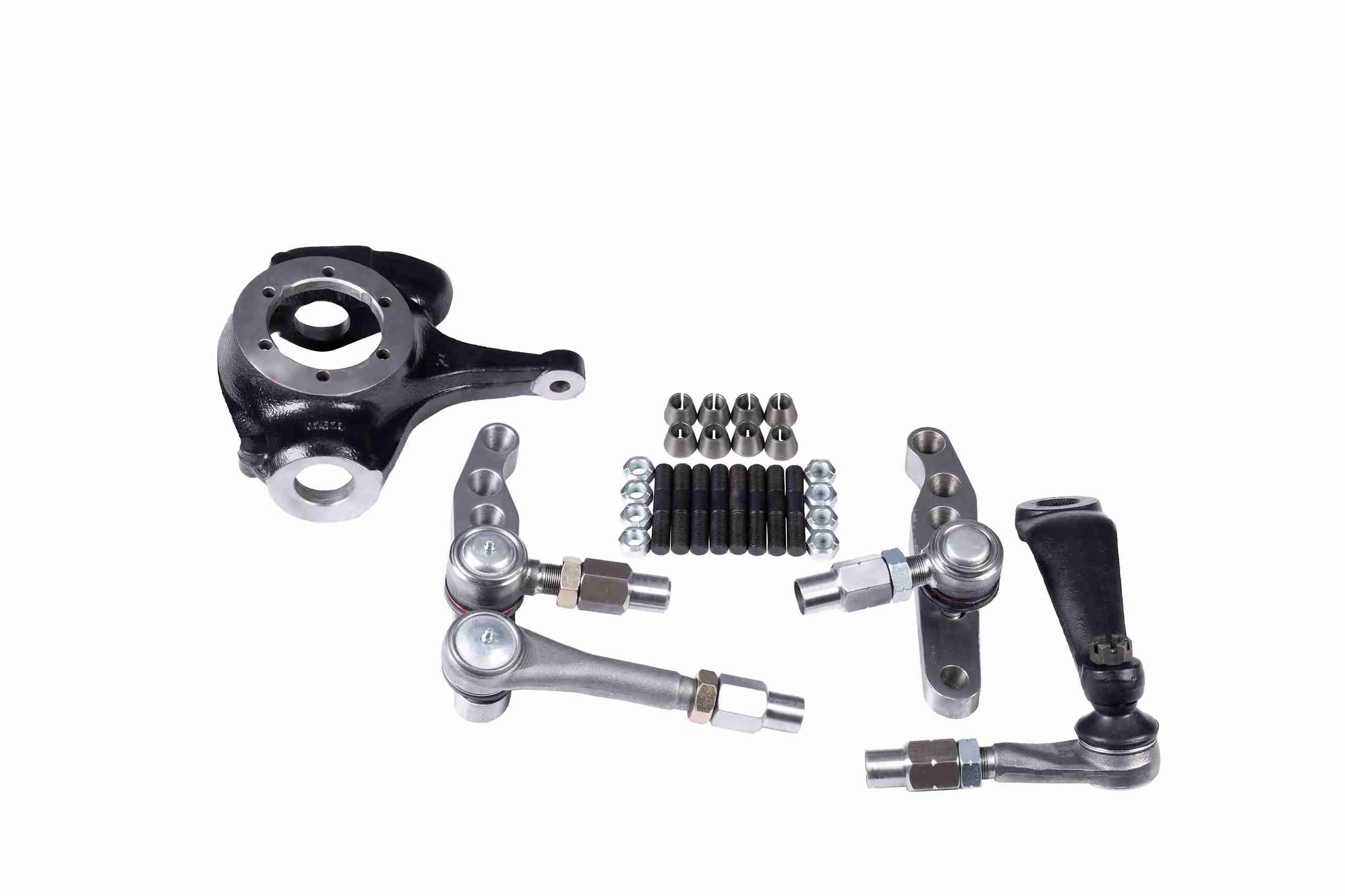

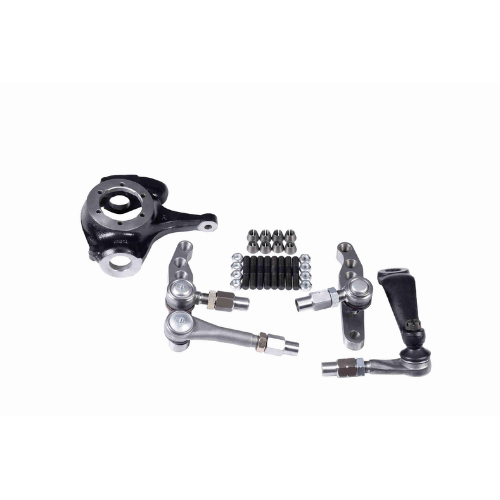

Kit Includes:

1 - Dana 44 Chevy Passenger Side Knuckle "Bottom Down Taper" completely machined and Ready to Use.

1 – Driver Side Arm(1.25” Thick) Tapered for the 7/8” Chevy ¾ Ton Tie Rods

1 – Passenger Side Arm (1.25” Thick) tapered for 7/8” Chevy ¾ Ton Tie Rods

1 – ES 2026 R Drag Link End with Grease Fitting, Castle Nut and Cotter Pin

1 – ES 2027 L Drag Link End with Grease Fitting, Castle Nut and Cotter Pin

1 – ES 2234 R Tie Rod End with Grease Fitting, Castle Nut and Cotter Pin

1 – ES 2234 L Tie Rod End with Grease Fitting, Castle Nut and Cotter Pin

8 – Chromoly 9/16”-18 Dana 44 Studs

8 – Conical Washers

8 – Lock Nuts

2 – 7/8 – 18 Left Inserts/Tube Adapters/ Weld Bungs

2 – 7/8 – 18 Right Inserts/ Tube Adapters/ Weld Bungs

2 – 7/8 – 18 Left Jam Nuts

2 – 7/8 – 18 Right Jam Nuts

1 – OPTIONAL 3" Drop Forged Pitman Arm (32 Splines) Fully Indexable
